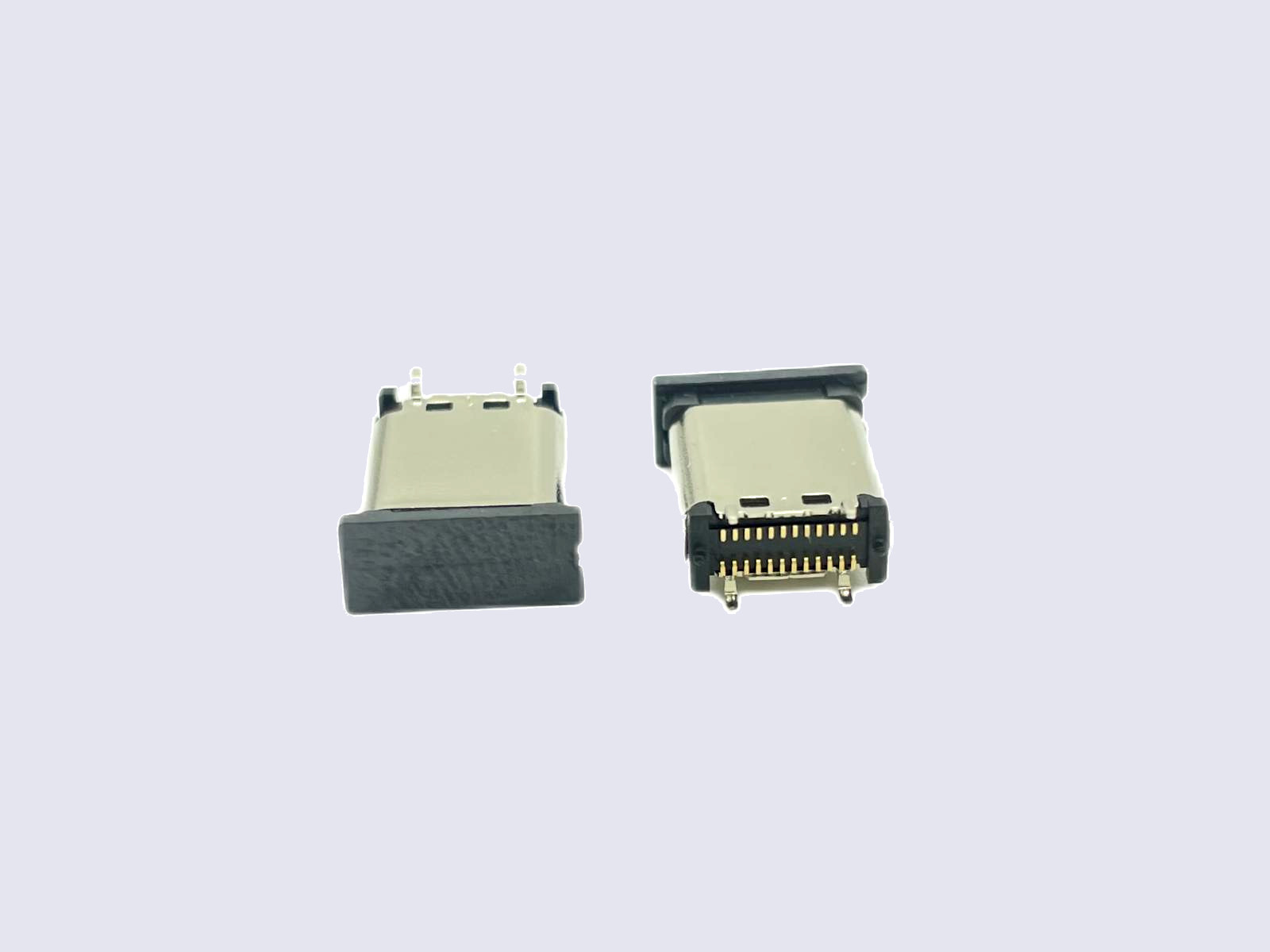

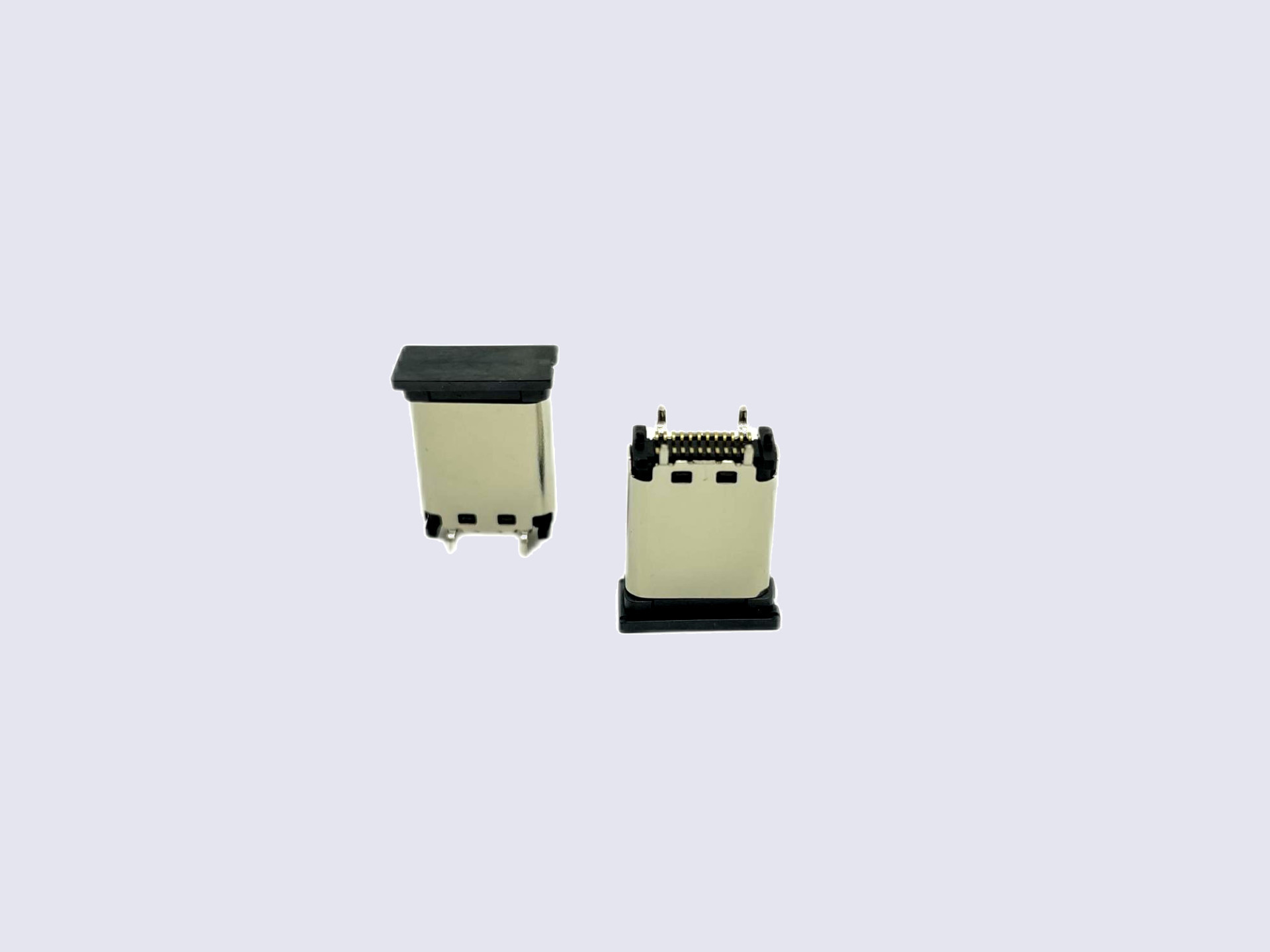

Type-C 24Pin Stand Sticker Mother Seat
1. Electrical characteristics: Rated current: 5A max Rated voltage: 20V/DC max Withstand voltage: AC 100V minimum Insulation impedance: 100M minimum Contact impedance: 400m max Contact impedance after durability: 50m maximum 2. Environmental characteristics: Working environment temperature -30 ℃ ~ 85 ℃ 3. Mechanical characteristics: Inserting force: 5 ~ 20N Pullout force: 8 ~ 20N Plug speed: 12.5/mm, plug frequency 500 times/minute Durability: 10000Cycles Inseration force after durability: 5 ~ 20N Withdrawing force after durability: 6 ~ 20N 4. Salt spray test Salt spray: 48H
1. Electrical characteristics: Rated current: 5A max Rated voltage: 20V/DC max Withstand voltage: AC 100V minimum Insulation impedance: 100M minimum Contact impedance: 400m max Contact impedance after durability: 50m max 2. Environmental characteristics: Working environment temperature -30 ℃ ~ 85 ℃ 3. Mechanical characteristics: Inseration force: 5 ~ 20N Pulling force: 8 ~ 20N Plug speed: 12.5/mm, plug frequency 500 times/minute Durability: 10000Cycles Inserting force after durability: 5 ~ 20N Withdrawing force after durability: 6 ~ 20N 4. Salt spray test Salt spray: 48H
Classification:
keywords:
Product Details
1. Electrical characteristics: Rated current: 5A max Rated voltage: 20V/DC max Withstand voltage: AC 100V minimum Insulation impedance: 100M minimum Contact impedance: 400m max Contact impedance after durability: 50m max 2. Environmental characteristics: Working environment temperature -30 ℃ ~ 85 ℃ 3. Mechanical characteristics: Inseration force: 5 ~ 20N Pulling force: 8 ~ 20N Plug speed: 12.5/mm, plug frequency 500 times/minute Durability: 10000Cycles Inserting force after durability: 5 ~ 20N Withdrawing force after durability: 6 ~ 20N 4. Salt spray test Salt spray: 48H
